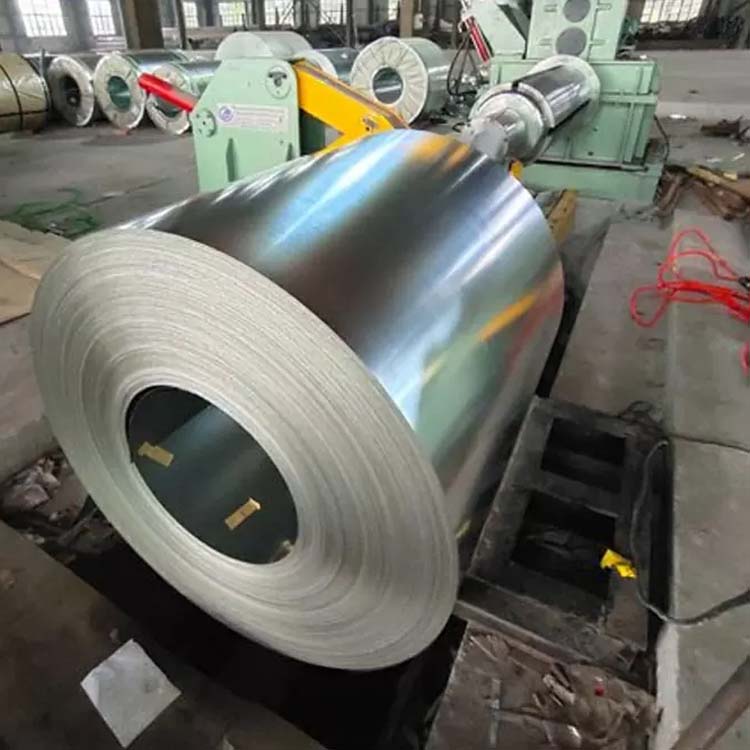

SGC340 SGC490 Galvanized Steel Coil
SGC340 SGC490 Galvanized Steel Coil
Galvanized coil is a thin steel plate with a layer of zinc adhered to the surface by immersing the thin steel plate in a molten zinc bath. Galvanized coils can be divided into hot-rolled galvanized coils and cold-rolled hot-dip galvanized coils, which are mainly used in construction, home appliances, automobiles, containers, transportation and household industries. Especially steel structure construction, automobile manufacturing, steel silo manufacturing and other industries.
[email protected]
Email:
+8613396350973
Whatsapp:
PRODUCT DESCRIPTION
Galvanized coil is a thin steel plate with a layer of zinc adhered to the surface by immersing the thin steel plate in a molten zinc bath. Galvanized coils can be divided into hot-rolled galvanized coils and cold-rolled hot-dip galvanized coils, which are mainly used in construction, home appliances, automobiles, containers, transportation and household industries. Especially steel structure construction, automobile manufacturing, steel silo manufacturing and other industries.
| Product Name | Galvanized Steel Coil Galvanized 0.12mm-6.0mm Thickness Gi Sheet Galvanized Steel Coil Prices |
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer’s requirement |
| Width | 600mm-1500mm, according to customer’s requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer’s requirement |
Large quantities of thin galvanized coils are used in automotive manufacturing, reefer containers, the construction industry, ventilation and heating installations, and furniture manufacturing. Galvanizing has become an important anti-corrosion method for steel, not only because zinc can form a dense protective layer on the surface of steel, but also because zinc has a cathodic protection effect. When the galvanized layer is damaged, it can still prevent the iron matrix through cathodic protection material corrosion.
Galvanized Coil Coating:
(1) Normal spangle coating
During the normal solidification process of the zinc layer, the zinc grains grow freely and form a coating with an obvious spangle shape.
(2) Minimized spangle coating
During the solidification process of the zinc layer, the zinc grains are artificially restricted to form the smallest possible spangle coating.
(3) Zinc-free coating
The coating obtained by adjusting the chemical composition of the plating solution has no visible spangle morphology and a uniform surface.
(4) Zinc-iron alloy coating
Heat treatment of the steel strip after passing through the galvanizing bath to form an alloy layer of zinc and iron throughout the coating. A coating that can be painted directly without further treatment other than cleaning.
Packing and shipping
The company has domestic first-class professional technical consultants and a team of outstanding employees with professional skills. The main products are carbon steel/galvanized steel. Stainless steel/steel coil steel bars, galvalume, color-coated coils, profiles, steel bars, aluminum products, roof panels. Products are sold to more than 60 countries and regions in Europe, the Middle East, Southeast Asia, and Australia.
FACTORY APPEARANCE
Company As 20000 Square Meters Of Indoor Storage more Than 20,000 Tons Of Inventory, Spot Product Standard Involves European Standard American Standard British Standard Australian Standard German Standard, Now According To Customer Requirements For Product Opening Strip.Cutting.Processing.Annual sales of more than 60 milliontons.Our company owns the firs class professional technique adviser in China and the excellent staffs with professional technology.The main products are carbon steel / galvanized.
PRODUCT DESCRIPTION
We promise”complete specifications, prompt delivery, high quality, competitive price, “The unwavering supports you provide, along with the increasing requirements you put contributes to more varied high-quality products with more competitive prices we offer.Win-win situations are always our pursuit.
OUR ADVANTAGE
We have won recognition from our clients due to our good creditand good services.
